NissanVanette SerenaKVC2305.1994 - 01.1997Chassis and transmission305 - clutch master cylinder (chassis)

305 - clutch master cylinder (chassis) for Nissan Vanette Serena KVC23



Frame / SeriesKVC23 / C23 body W (wagon )engine CD20T (2000 diesel turbo )drive 2WD (two-wheel drive )
Manufacture period05.1994 - 01.1997grade FX/R (FX Rio )transmission MT (manual transmission )

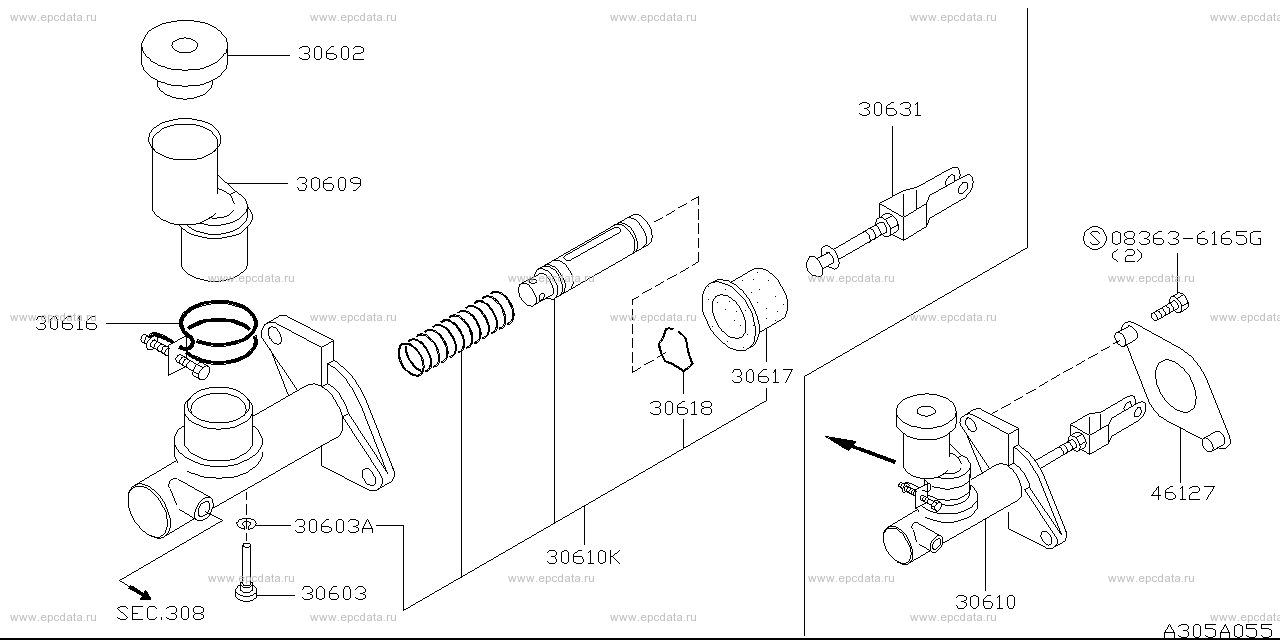

Scheme 305A_001 Scheme 305B_001
Applies for modelsManufacture periodSpec
GA16DE.MT +SR20DE.MT +CD20.MT +CD20T.MT05.1994 - 08.1995
GA16DE.MT +SR20DE.MT +CD20.MT +CD20T.MT08.1995 - 01.1997

Open full screen pictureOpen full screen picture
Up to the top

083636165G
30602 - cap assembly, reservoir
30603 - stopper, screw
30603A - gasket
30609 - reservoir, oil clutch
30610 - cylinder assembly, clutch master
30610K - piston kit, clutch master cylinder
30616 - band assembly, reservoir
30617 - cover, dust
30618 - ring, stopper
30631 - rod assembly, push
46127 - packing, clutch master cylinder
Applies for modelsManufacture periodSpec
GA16DE.MT +SR20DE.MT +CD20.MT +CD20ET.MT01.1997 - 01.1998

Open full screen pictureOpen full screen picture
Up to the top

083636165G
30602 - cap assembly, reservoir
30603 - stopper, screw
30603A - gasket
30609 - reservoir, oil clutch
30610 - cylinder assembly, clutch master
30610K - piston kit, clutch master cylinder
30616 - band assembly, reservoir
30617 - cover, dust
30618 - ring, stopper
30631 - rod assembly, push
46127 - packing, clutch master cylinder

Nissan Vanette Serena genuine parts
